Coding Flowcharts

On this page we will learn

  • the steps for the most common GameFrame coding tasks
  • where to find an example of each task in the lessons

Below are flowcharts for the most common steps in coding a GameFrame game. Each one has a link to a lesson where we did it in Space Rescue.

Create a Room

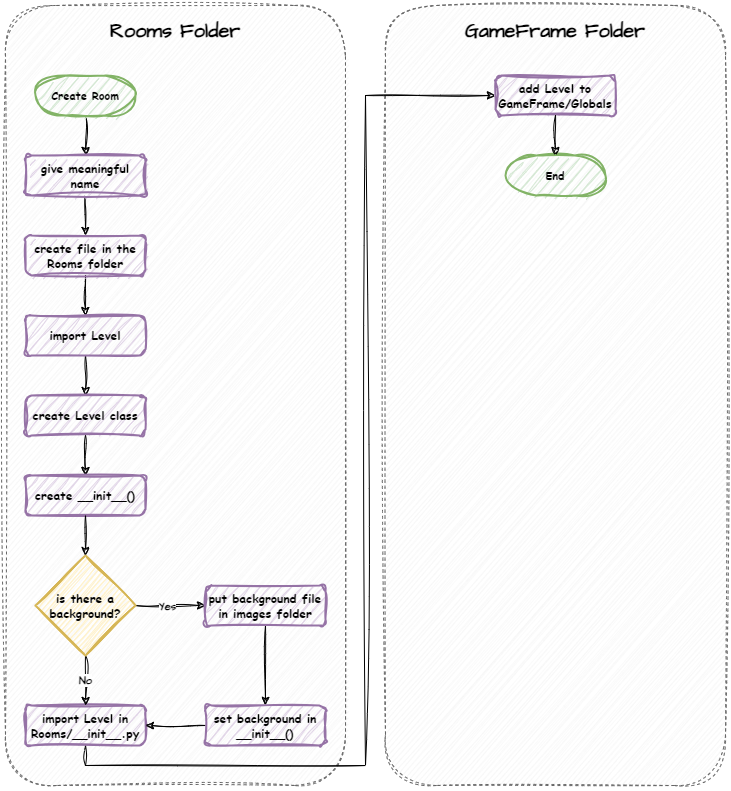

Create room flowchart

Example: Lesson 2: GamePlay Room

Create an object

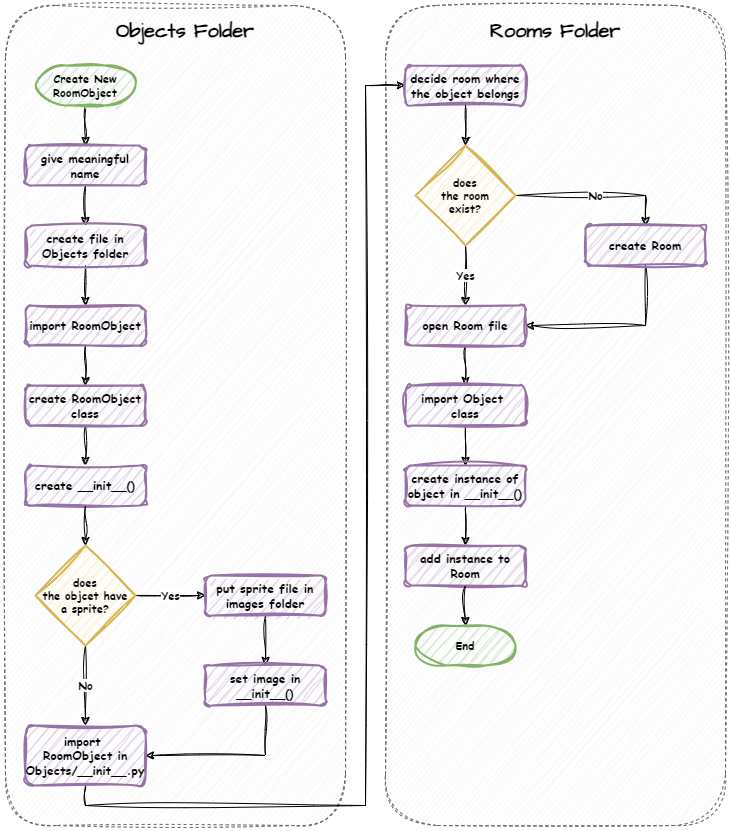

Create object flowchart

Example: Lesson 3: Spaceship

Move an object with keys

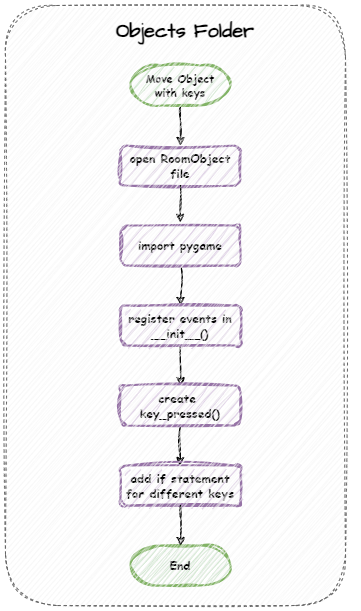

Move with keys flowchart

Example: Lesson 3: Spaceship

Detect a collision

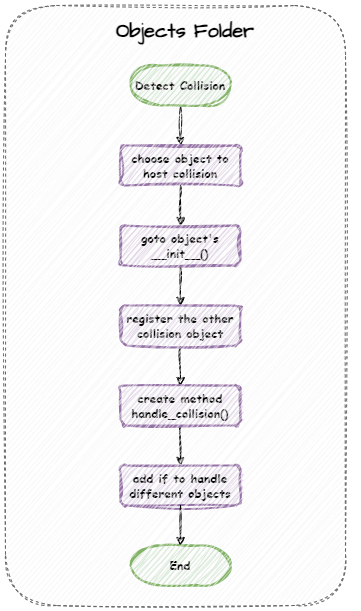

Detect collision flowchart

Example: Lesson 9: Ship and Asteroid Collision

More examples

The Index of Topics lists every lesson that covers each task.
