6. Zork¶

In this lesson we will learn

how to create a new RoomObject from what we already know
how to plan movement with IPO tables
how to start an object moving when it's created
how to reverse a direction by negating a number

Terminology

boss – a powerful enemy in a game, often faced at the end of a challenge.
automate – to make something happen by itself under the computer's control, instead of through the player's input.
instance – one object made from a class.
instantiation – creating a new object from a class, which runs the class's __init__ method.
negate – to change a number to its opposite sign, such as -10 to 10, by multiplying it by -1.

Our boss for this game is Zork, an evil alien. Creating Zork follows the same steps as creating the ship, so we'll race through those, then plan and code the parts that are different.

Create the Zork class¶

Create a new file in the Objects folder, add the code below and save it as Zork.py.

Objects/Zork.py
from GameFrame import RoomObject

class Zork(RoomObject):
    """
    A class for the game's antagonist
    """
    def __init__(self, room, x, y):
        """
        Initialise the Zork object
        """
        # include attributes and methods from RoomObject
        RoomObject.__init__(self, room, x, y)

        # set image
        image = self.load_image("Zork.png")
        self.set_image(image,135,165)

Code explanation

line 1 → imports the RoomObject class.
line 3 → defines the Zork class as a subclass of RoomObject.
lines 4–6 → a docstring that explains what the class is for.
line 7 → defines the __init__ method.
lines 8–10 → a docstring that explains what the method does.
line 12 → runs RoomObject's __init__ method, so Zork inherits everything a RoomObject has.
lines 15–16 → loads Zork.png and gives it to Zork at 135 × 165 pixels.

Open Objects/__init__.py, add the highlighted code below and save it.

Objects/__init__.py
from Objects.Title import Title
from Objects.Ship import Ship
from Objects.Zork import Zork

Code explanation

line 3 → imports the Zork class, so GameFrame can find it.

Open Rooms/GamePlay.py, add the highlighted code below and save it.

Rooms/GamePlay.py
from GameFrame import Level
from Objects.Ship import Ship
from Objects.Zork import Zork

class GamePlay(Level):
    def __init__(self, screen, joysticks):
        Level.__init__(self, screen, joysticks)

        # set background image
        self.set_background_image("background.png")

        # add objects
        self.add_room_object(Ship(self, 25, 50))
        self.add_room_object(Zork(self,1120, 50))

Code explanation

line 3 → imports the Zork class.
line 14 → creates Zork at (1120, 50), on the right-hand side of the screen, and adds it to the Room.

PRIMM

Predict where Zork will appear.
Run MainController.py and press space.
Investigate: what would you change to put Zork lower down the screen?

Our boss is on the screen. Now let's think about what makes Zork different.

Planning¶

Zork is controlled by the computer, so we need to automate its movement. Like our spaceship, Zork only moves up and down, but not because of key presses. There are two parts to Zork's movement:

starting Zork moving when the game begins
reversing Zork's direction when it reaches the top or bottom of the screen

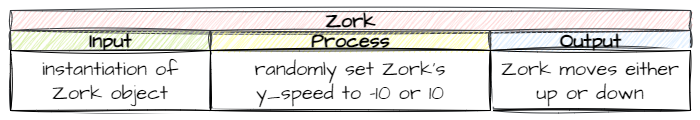

Starting movement¶

Let's use an IPO table to plan Zork's first movement:

Output → Zork moves up or down
Input → Zork is created
Process → randomly set Zork's y_speed to -10 (up) or 10 (down)

Initial Zork movement IPO

Instantiation

Remember, a class is like a blueprint for creating objects. Each object made from a class is an instance of it, and creating one is called instantiation. When a Zork object is instantiated, its __init__ method runs.

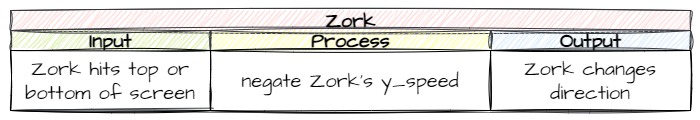

Changing direction¶

When Zork reaches the top or bottom of the screen, we don't want it to stop. We want it to change direction, so y_speed goes from -10 to 10 or the other way round.

Output → Zork moves in the opposite direction
Input → Zork touches the top or bottom of the screen
Process → negate Zork's y_speed (-10 becomes 10, and 10 becomes -10)

Change Zork direction IPO

Now we've planned both, let's code them.

Starting movement¶

Our IPO table says the trigger is Zork being created. When an object is instantiated its __init__ method runs, so that's where the code goes.

We can use random.choice to pick a random item from a list. If we give it a list of -10 and 10, it will choose one of them. Go back to Objects/Zork.py and add the highlighted code below.

Objects/Zork.py
from GameFrame import RoomObject
import random

class Zork(RoomObject):
    """
    A class for the game's antagonist
    """
    def __init__(self, room, x, y):
        """
        Initialise the Zork object
        """
        # include attributes and methods from RoomObject
        RoomObject.__init__(self, room, x, y)

        # set image
        image = self.load_image("Zork.png")
        self.set_image(image,135,165)

        # set initial movement
        self.y_speed = random.choice([-10, 10])

Code explanation

line 2 → imports the random module so we can use choice.
line 20 → randomly chooses -10 or 10 and sets it as Zork's y_speed, so Zork starts moving up or down.

PRIMM

Predict what Zork will do when the game starts.
Run MainController.py a few times.
Investigate: does Zork always go the same way? What happens when it reaches the edge?

Zork should move up or down until it's off the screen.

Reverse Zork's direction¶

To reverse Zork's direction, we'll use the same pattern we used to keep the ship on screen: step calls a keep_in_room method. The difference is what keep_in_room does. Instead of moving Zork back, it reverses Zork's y_speed.

Go back to Objects/Zork.py and add the highlighted code below.

Objects/Zork.py
from GameFrame import RoomObject, Globals
import random

class Zork(RoomObject):
    """
    A class for the game's antagonist
    """
    def __init__(self, room, x, y):
        """
        Initialise the Zork object
        """
        # include attributes and methods from RoomObject
        RoomObject.__init__(self, room, x, y)

        # set image
        image = self.load_image("Zork.png")
        self.set_image(image,135,165)

        # set initial movement
        self.y_speed = random.choice([-10, 10])

    def keep_in_room(self):
        """
        Keeps the Zork inside the top and bottom room limits
        """
        if self.y < 0 or self.y > Globals.SCREEN_HEIGHT - self.height:
            self.y_speed *= -1

    def step(self):
        """
        Determine what happens to Zork on each tick of the game clock
        """
        self.keep_in_room()

Code explanation

line 1 → imports Globals so we can use the screen height.
line 22 → defines the keep_in_room method.
lines 23–25 → a docstring that explains what the method does.
line 26 → checks if Zork has gone past the top of the screen or past the bottom (the screen height minus Zork's height)…
line 27 → …and negates y_speed by multiplying it by -1. *= works like +=: it multiplies y_speed by -1 and stores the answer back in y_speed.
line 29 → defines the step method, which runs on every tick.
lines 30–32 → a docstring that explains what the method does.
line 33 → calls keep_in_room on every tick.

PRIMM

Predict what Zork will do when it reaches the top or bottom now.
Run MainController.py.
Investigate: change -10 and 10 on line 20 to other numbers. What changes? Change them back when you're done.

Commit and push¶

In GitHub Desktop, type Created Zork in the Summary box.
Click Commit to main.
Click Push origin.
