11. Laser and Asteroid Collision

In this lesson we will learn

  • how to plan a collision with an IPO table
  • how to delete the other object in a collision

Our lasers are shooting at a sensible rate. Now they need to do something: destroy any asteroid they hit.

Planning

We've written very similar code for the collision between an Asteroid and the Ship. This time, instead of ending the game, we want to destroy the asteroid. When a Laser collides with an Asteroid:

  • the asteroid is destroyed
  • the laser keeps moving across the screen

We already know how to destroy objects: the delete_object method we used in Lesson 8. We'll put this code in the Laser class.

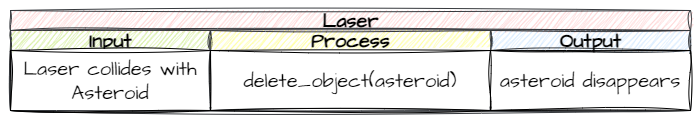

Laser asteroid collision IPO

Coding

Remember, handling collisions in GameFrame takes two steps:

  1. register which collisions to detect with register_collision_object
  2. write a handle_collision method with the game logic for the collision

Open Objects/Laser.py and add the highlighted code below.

Objects/Laser.py
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
from GameFrame import RoomObject, Globals

class Laser(RoomObject):
    """
    Class for the lasers shot by the Ship
    """

    def __init__(self, room, x, y):
        """
        Initialise the laser
        """
        # include attributes and methods from RoomObject
        RoomObject.__init__(self, room, x, y)

        # set image
        image = self.load_image("laser.png")
        self.set_image(image, 33, 9)

        # set movement
        self.set_direction(0, 20)

        # handle events
        self.register_collision_object("Asteroid")

    def step(self):
        """
        Determine what happens to the laser on each tick of the game clock
        """
        self.outside_of_room()

    def outside_of_room(self):
        """
        removes laser if it has exited the room
        """
        if self.x > Globals.SCREEN_WIDTH:
            self.room.delete_object(self)

    # --- Event handlers
    def handle_collision(self, other, other_type):
        """
        Handles laser collisions with other registered objects
        """
        if other_type == "Asteroid":
            self.room.delete_object(other)
Code explanation
  • line 23 → registers collisions with Asteroid objects.
  • line 39 → defines handle_collision, which GameFrame calls when the laser hits a registered object.
  • lines 40–42 → a docstring that explains what the method does.
  • line 43 → checks if the laser hit an Asteroid…
  • line 44 → …and deletes the other object (the asteroid) from this laser's Room.

PRIMM

  1. Predict what will happen when a laser hits an asteroid.
  2. Run MainController.py and shoot some asteroids.
  3. Investigate: what happens to the laser after it hits an asteroid? We'll come back to this in Unfair Punishment.

Commit and push

  1. In GitHub Desktop, type Laser destroys asteroids in the Summary box.
  2. Click Commit to main.
  3. Click Push origin.
