OurAPI

OurAPI was originally created as an educational tool. It enables quick and easy development of a RESTful JSON API, with real-time request feedback displayed through its graphical interface. Built-in GET and POST clients allow for interface testing, although any HTTP client—including a web browser—can interact with the API. It was developed by Steven Tucker and his original

We will use OurAPI’s built in database to practice using API GET and POST requests. We will then explore using our own databases and creating our own API functions.

Getting Started¶

To get started you can download OurAPI from SourceForge. OurAPI doesn’t have an installer, rather extracting the zip file will provide access to the program, so make sure you remember it. Launch OurAPI by opening it’s folder and starting the main file.

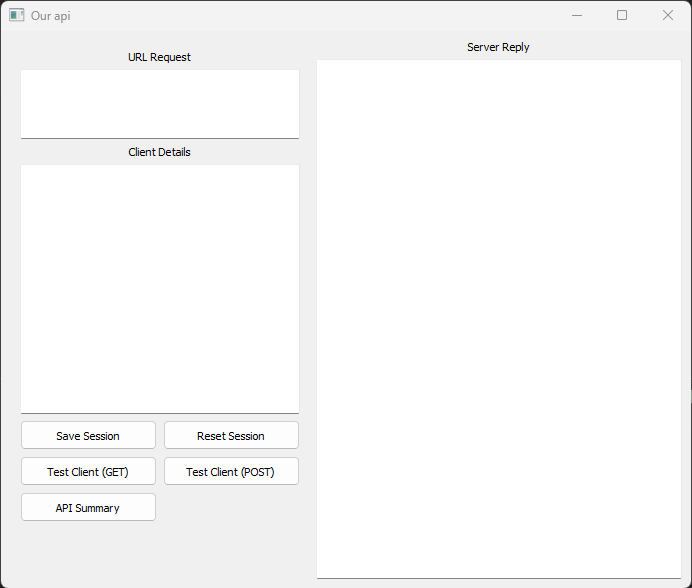

Now you should have the following window displayed on your screen.

What you are seeing is the GUI of the application, in the background your computer is running a webserver. This webserver is hosting the API that we will be accessing. Let try it out with a simple GET request.

Function Calls¶

First call¶

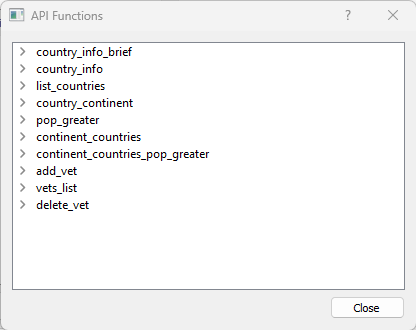

The APi has a range of functions that provide access to the database. To see these functions click on the API Summary button. You should have the following dialogue pop up:

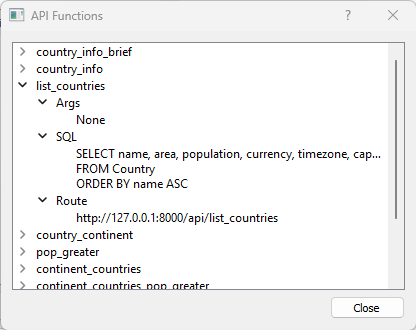

You can see there are currently 10 functions the API offers. Click on the > beside list_countries and you will see three more options. Click on all the > so you can see all the details of list_countries function.

Lets look at those details:

• Args → there is no need to pass arguments

• SQL → this is the SQL query that will be run on the database

• Route → this is the address that executes the query

  • http://127.0.0.1:8000 → the address of the webserver on your computer

  • /api/list_countries the route to the API function of that web server.

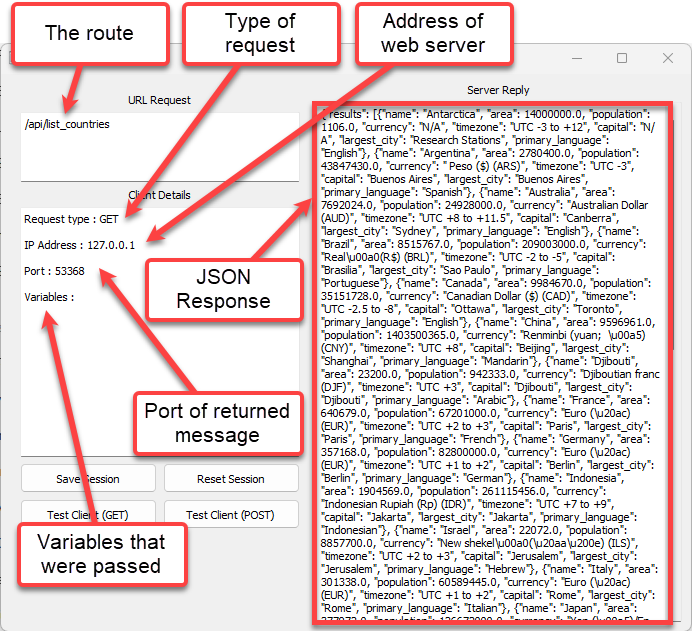

Copy the route, paste it into address bar of a browser, then press return. Two things should have happened:

1. Your browser should display a block of text – this is actual the JSON response from the web server.

2. the OurAPI UI should now have a heap of new details.

Test Client

Lets run that request a different way:

1. Click Reset Session

2. Click on Test Client (GET) then type list_countries

3. Click Run

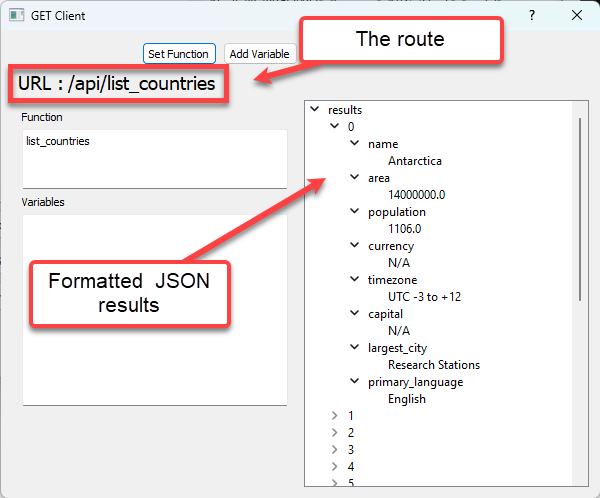

The OurAPI GUI should display the same information as before, but lets look at the change in the GET Client dialogue.

Call with Argument¶

RESTful operations also allow for the API to be provided with arguments. Lets try one:

In the GET Client:

1. Click on Set Function → enter country_info

2. Click on Add Variable

   • Name → country

   • Value → Brazil

3. Click Run

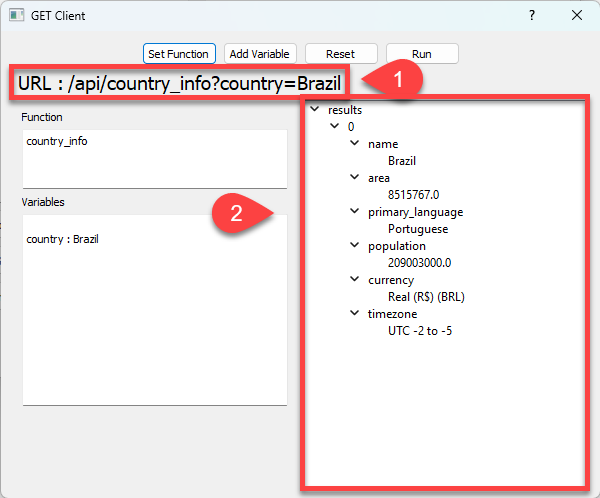

You will notice:

1. The argument name and the value are part of the URL

2. Only one result has been returned

Close the GET Client then open the POST Client and repeat the same process.

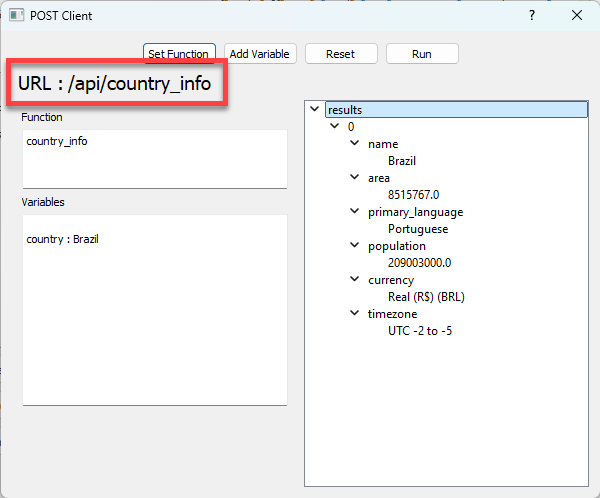

Have a look at the POST URL. Notice that the argument name or value is not part of it? That’s because the data is sent in the body of the request—not in the URL. This means users don’t see the data in the address bar, making it more private and allowing larger amounts of information to be sent, like form details, login credentials, or file uploads.

Customising OurAPI¶

You can customise OurAPI to use different databases and create your own functions. What’s even better is that it is super easy to do this.

To udnerstand how to do this, we’re going to look a bit closer at how OurAPI works.

Exploring OurAPI¶

First, open the api_db.sqlite file using DB Browser. You will find that it just an ordinary SQLite database. You can see that there are many more tables in the database than we can access using the API functions. That is one of the security features of the REST framework. Users can only access the data you make available to them.

Next open the definitions.ini with a text editor, or in VS Code. You will find the following:

[country_info_brief]
args = country
sql = SELECT name,population
      FROM Country
      WHERE name = :country

[country_info]
args = country
sql = SELECT name, area, primary_language, population, currency, timezone
      FROM Country
      WHERE name = :country

[list_countries]
args = None
sql = SELECT name, area, population, currency, timezone, capital, largest_city, primary_language
      FROM Country
      ORDER BY name ASC

[country_continent]
args = country
sql = SELECT c.name AS Country, ct.name AS Continent
      FROM Country AS c
      INNER JOIN Continent AS ct
      ON c.continent_id = ct.id
      WHERE c.name = :country

[pop_greater]
args = min_pop
sql = SELECT name, population
      FROM Country
      WHERE population > :min_pop
      ORDER BY population ASC

[continent_countries]
args = continent
sql = SELECT c.name AS Country
      FROM Country AS c
      INNER JOIN Continent AS ct
      ON c.continent_id = ct.id
      WHERE ct.name = :continent

[continent_countries_pop_greater]
args = continent,min_pop
sql = SELECT c.name, c.population
      FROM Country AS c
      INNER JOIN Continent AS ct
      ON c.continent_id = ct.id
      WHERE ct.name = :continent
      AND c.population > :min_pop
      ORDER BY c.population ASC

[add_vet]
args = first_name,last_name,phone,address,room,appointment_times,email
sql = INSERT INTO Vet
      (first_name, last_name, phone_no, address, room_no, appointment_times, email)
      VALUES(:first_name, :last_name, :phone, :address, :room, :appointment_times, :email)

[vets_list]
args = None
sql = SELECT first_name, last_name
      FROM Vet

[delete_vet]
args = first_name,last_name
sql = DELETE FROM Vet
      WHERE first_name = :first_name
      AND last_name = :last_name

Looking at this you should recognise three things:

1. the text in the square brackets are the names of the API functions

2. the args line lists the arguments that the function needs

3. the sql is a Python parameterised SQL statement.

With this information, you can start creating new API functions.

Making OurAPI yours¶

We have now identified the two files that provide OurAPI with the relevant information:

• definitions.ini provides the structure for the API functions

• api_db.sqlite provides the data for the functions

So to customise OurAPI replace these two files with your custom file:

• your database needs to be called api_db.sqlite

• your file containing your function details needs to be called definitions.ini

Remember the API function structure when making your own definitions.ini:

[<function_name>]
args = <argument names seperated by commas>
sql = <parameterised SQL statement>
